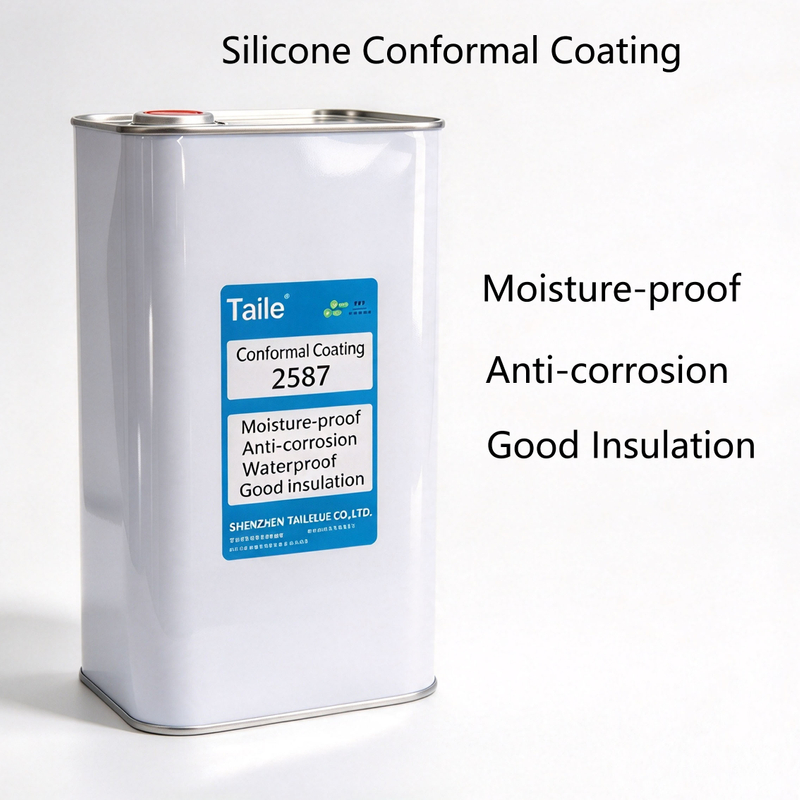

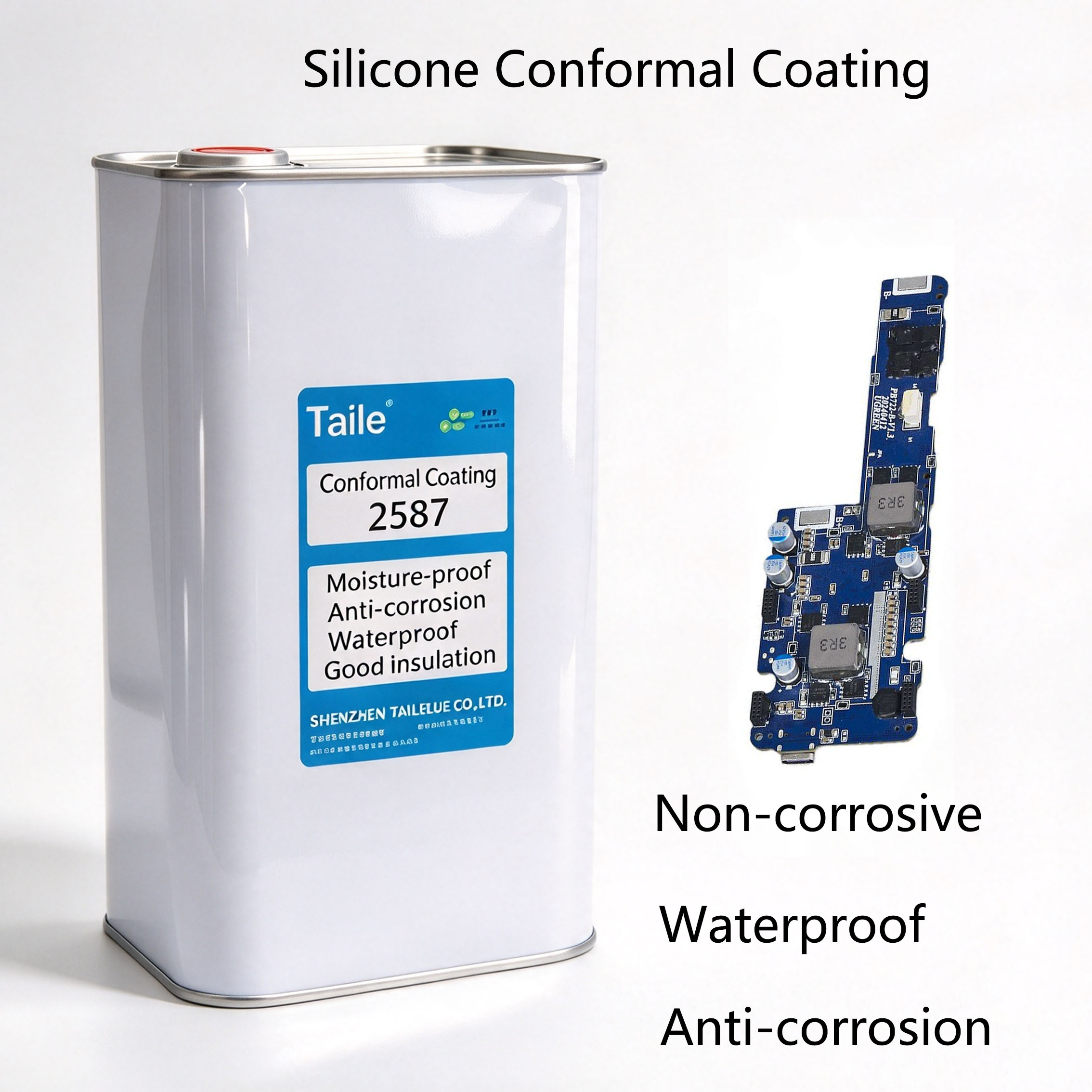

2587 Silicone Conformal Coating

2587 is a one-component silicone conformal coating material. It features a solid content of 74%, a viscosity of 400 mPa·s, and a high dielectric strength of ≥20 kV/mm. It cures at room temperature with a tack-free time of 15-20 minutes, withstands temperatures from -50℃ to 200℃, and offers strong adhesion, waterproof and anti-corrosion protection. It complies with RoHS requirements and is mainly used for conformal coating protection on various PCB boards. The recommended coating thickness is 25±5 μm. Shelf life is 12 months.

Product Highlights & Features

One-component silicone resin system
 High solid content: 74%
 Medium viscosity: 400 mPa·s
Fast tack-free time: 15-20 min
 High dielectric strength: ≥20 kV/mm
 High temperature resistant: application temperature -50~200℃
Contains fluorescent indicator for easy inspection
 Resistant to UV weather aging, non-corrosive to electronic components
 Strong adhesion, good insulation, waterproof and anti-corrosion
Complies with RoHS requirements
Recommended coating thickness: 25±5 μm

Shelf life: 12 months
Packaging: 1L/can, 5L/barrel, 18L/barrel

Operating Instructions

1.Before use, confirm the product condition and stir evenly.
2.Clean the coating surfaces to ensure they are dry, free of oil, and free of dust.
3.Apply the conformal coating evenly to the PCB surface by brushing, spraying, or dipping.
4.Recommended coating thickness: 25±5 μm.
5.Cure at room temperature; tack-free time is 15~20 min.

6.After curing, proceed with subsequent testing or use.

Application Fields & Uses:
PCB protection
 Industrial control board
Communication equipment
 Home appliance controllers
 Automotive electronic controllers
 Circuit board protection
Electronic component insulation
 Moisture-proof protection

Packaging:

 1L/can, 5L/barrel, 18L/barrel

Other custom packaging
Storage & Transportation:

Store in a cool, dry, ventilated place, away from direct sunlight

This product is non-dangerous goods, stored and transported as general chemicals

Shelf life: 12 months
