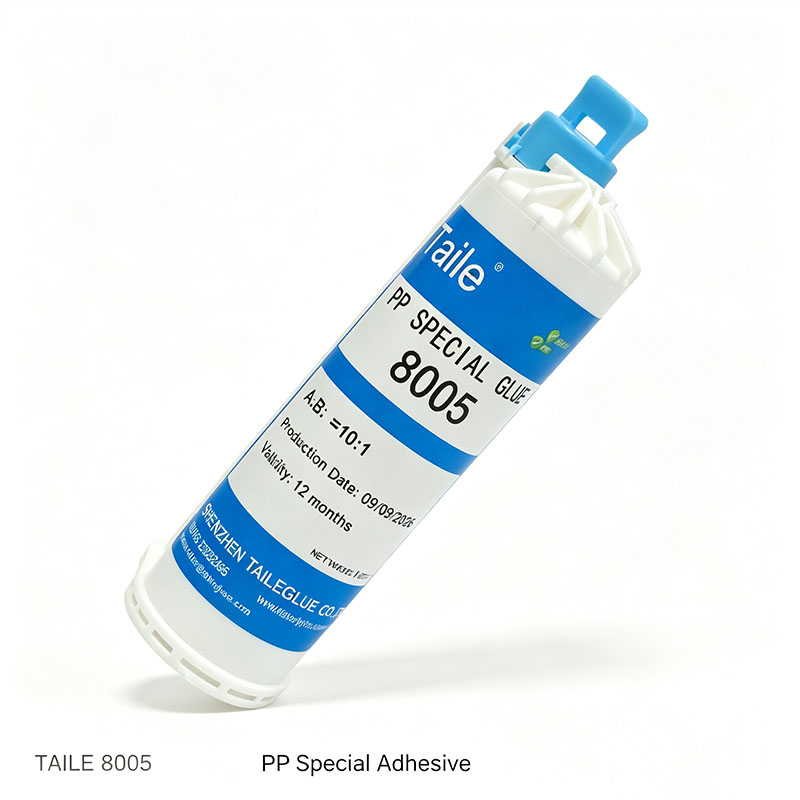

Taile‑8005 is a 10:1 two-part acrylic structural adhesive. It is specially developed for low-surface-energy plastics including PP, PE, PA and TPE. This two-component liquid adhesive can be applied by manual cartridge gun. After curing, it forms tough bond line with high shear strength, good impact resistance, aging resistance and solvent resistance. It can continuously work from -50℃ to 130℃, widely used for plastic parts assembly in automobile and electronic industries.
Features
Capable of bonding hard-to-stick low-surface-energy plastics: PP, PE, PA, TPE. It also supports dissimilar material bonding.
10:1 volume mixing ratio, 5-7 min working time at 25°C, easy operation and enough adjustment time for assembly.
High shear strength: PP-PP shear strength up to 3.6 MPa; PE-PE shear strength up to 3.5 MPa.
Cured adhesive is rigid with toughness, outstanding impact resistance, anti-aging and solvent resistance.
Wide service temperature range: -50℃ ~130℃, stable performance under extreme hot and cold environment.
100% solid content, no solvent. Available in multiple package sizes: 50ml,250ml,490ml cartridge.
Automotive Industry: PP/PE/TPE plastic housing, auto interior plastic components, plastic bracket assembly.
Electronics Industry: Low surface energy plastic housing, plastic connector, plastic structural parts bonding.
General Industrial Assembly: PP, PE, PA, TPE plastic parts, plastic-metal dissimilar bonding.
Reminder: For oily TPE and PE substrates, surface sanding & cleaning is recommended for higher bonding strength. Frequent bending workpieces must do pre-sample test before mass production.
Application: Automobile, Electronics, Construction
Bonding Function: Structural Adhesive
Color: Other, A:Off-white, B:Clear Transparent
Composition: Other, Acrylic Resin
Form: Liquid Shipping
Spec:50ml,250ml,490ml Cartridge
Mix Ratio:10:1 (By Volume)
Fixture Time @25°C:5-7 minutes
Continuous Operating Temperature:-50℃ ~ 130℃
Full Cure Time:24-48 hours
Hardness:Shore D 70
Solid Content:100%
Feature:High shear strength, impact resistant, anti-aging, bond PP PE PA TPE
Substrate:PP, PE, PA, TPE, metal, hard plastic
Storage Condition:2-8℃ recommended, avoid freezing
Shelf Life:12 months @2-8℃; 6 months @8-28℃
Glue Type:Two-part Acrylic Structural Adhesive
Parameter | Part A | Part B | Test Standard |
|---|---|---|---|
Appearance | Off‑white liquid | Clear transparent liquid | Visual inspection |
Base Material | MMA | ‑ | ‑ |
Viscosity(mPa·s @25℃) | 8000 (5000‑11000) | 800 (500‑1000) | GB/T2794‑2013 |
Density(g/cm³) | 0.98 (0.96‑1.00) | 0.99 (0.96‑1.00) | GB/T13354‑1992 |
Mixing Ratio (by volume) | 10 : 1 | ‑ | |
Working Time(@25℃) | 5‑7 min | ‑ | |
Skin‑over Time(@25℃) | 10 min | ‑ |
Parameter | Typical Value | Range | Test Standard |
|---|---|---|---|
Hardness (Shore D) | 70 | 68‑72 | GB/T2411‑2008 |
Shear Strength (PP‑PP) | 3.6 MPa | ＞2 MPa | GB/T7124‑2008 |
Shear Strength (PE‑PE) | 3.5 MPa | ＞2 MPa | GB/T7124‑2008 |
Full Cure Time | 24‑48 h | ‑ | |
Continuous Operating Temperature | ‑50℃ ~ 130℃ | ‑ | |
Solid Content | 100% | ‑ |
Item | Specification |
|---|---|
Package Size | 50 ml, 250 ml, 490 ml cartridge |
Best Storage Temperature | 2‑8℃, shelf‑life 12 months |
Storage at 8‑28℃ | Shelf‑life 6 months |
Notice | Do NOT freeze. Return to room temperature before opening. |
