Acrylic Structural Glue

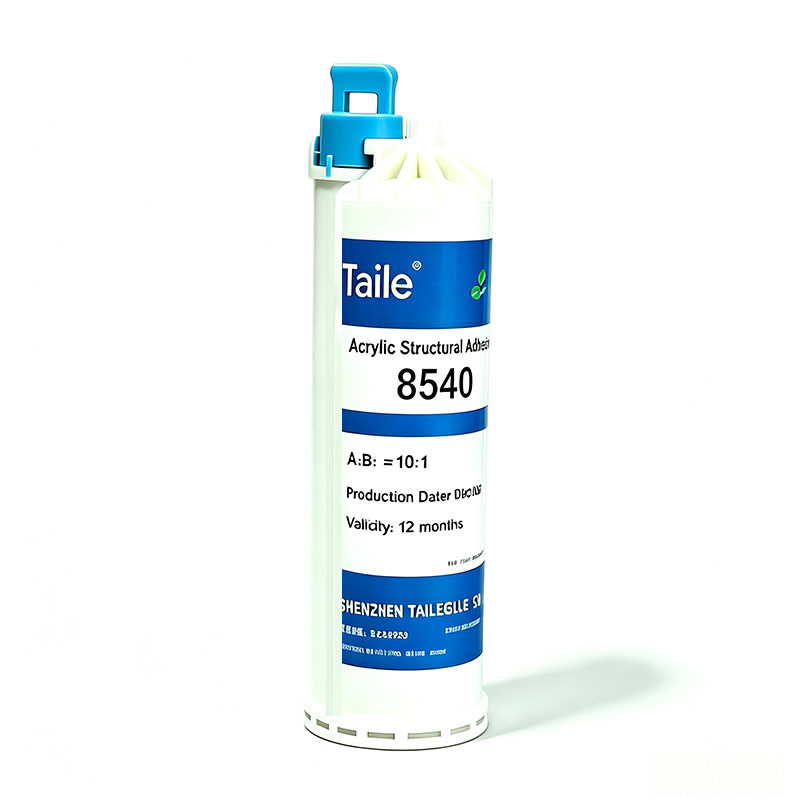

Model 8540 is two-part acrylic structural adhesive with 10:1 mixing ratio by weight, mixed color is light blue. It cures fast at room temperature with initial cure time 8–10 mins at 25℃, shear strength reaches above 18MPa.
The cured glue owns outstanding flexibility and excellent drop & impact resistance, specially designed for bonding SMC, FRP fiberglass, stainless steel, aluminum alloy and magnets, widely used in automotive lightweight and rail transit components.
General advantages of acrylic series: Fast room-temperature positioning, high tensile & peel strength, continuous temperature resistance up to 120℃. It bonds dissimilar materials like metal, composite and ceramic well, compatible with automatic dispensing and manual mixing, fully RoHS compliant for global industrial orders.

Key Advantages

1.Standard 10:1 mix ratio with light blue mixed color for easy uniform stirring.
2.Fast initial cure within 8–10 mins at 25℃, improve mass production efficiency.
3.High shear strength over 18MPa, stable bonding under long-term vibration.
4.Flexible formula with superior drop resistance & impact resistance for vehicle parts.
5.Perfect adhesion on SMC, FRP fiberglass, aluminum, stainless steel and magnets.
6.Continuous working temperature up to 120℃ for vehicle & outdoor equipment.
7.Solvent-free & RoHS compliant, meet global export environmental standards.
8.Compatible with automatic two-component dispenser and manual mixing operation.

Typical Applications

1.Automotive lightweight parts: Bond SMC & FRP fiberglass vehicle components;

2.Rail transit equipment: Composite assembly of aluminum, steel and magnets;

3.New energy vehicle housing & chassis composite bonding;

4.Construction machinery fiberglass housing & metal magnet assembly;

5.Heavy-duty shock-resistant structural composite bonding.

Processing Guide

Weigh Part A and Part B strictly at 10:1 by weight;
Stir fully for 3 mins until uniform light blue without streaks;
Complete coating & lamination within 8–10 mins after mixing;
Reach full bonding strength after 24 hours room temperature curing;
Clean substrate surface from oil and dust for optimal adhesion.
