Adhesives for AI Glasses: A Position-by-Position Selection Guide

A pair of AI glasses needs adhesive in at least eight places
Most people think adhesive is just the stuff that sticks two parts together. Anyone who has built AI glasses knows it is not that simple.

A single pair of AI glasses needs adhesive in at least seven or eight locations, and every location follows a completely different selection logic. Some joints demand high light transmission. Some must withstand heat. Some actually need to absorb light. And in a few spots, a fraction of a milligram of excess adhesive is enough to seize a hinge.

The real trouble is that adhesive problems tend to surface only at mass production. A pilot run looks perfect — then volumes ramp up, and distortion, bubbles, cracking and audio crosstalk appear out of nowhere. That is why "which adhesive?" is one of the most underestimated engineering questions in AI glasses manufacturing.

This guide breaks the problem down by joint location and gives you a selection checklist you can put to work immediately.

The Adhesive Map: see the whole picture first

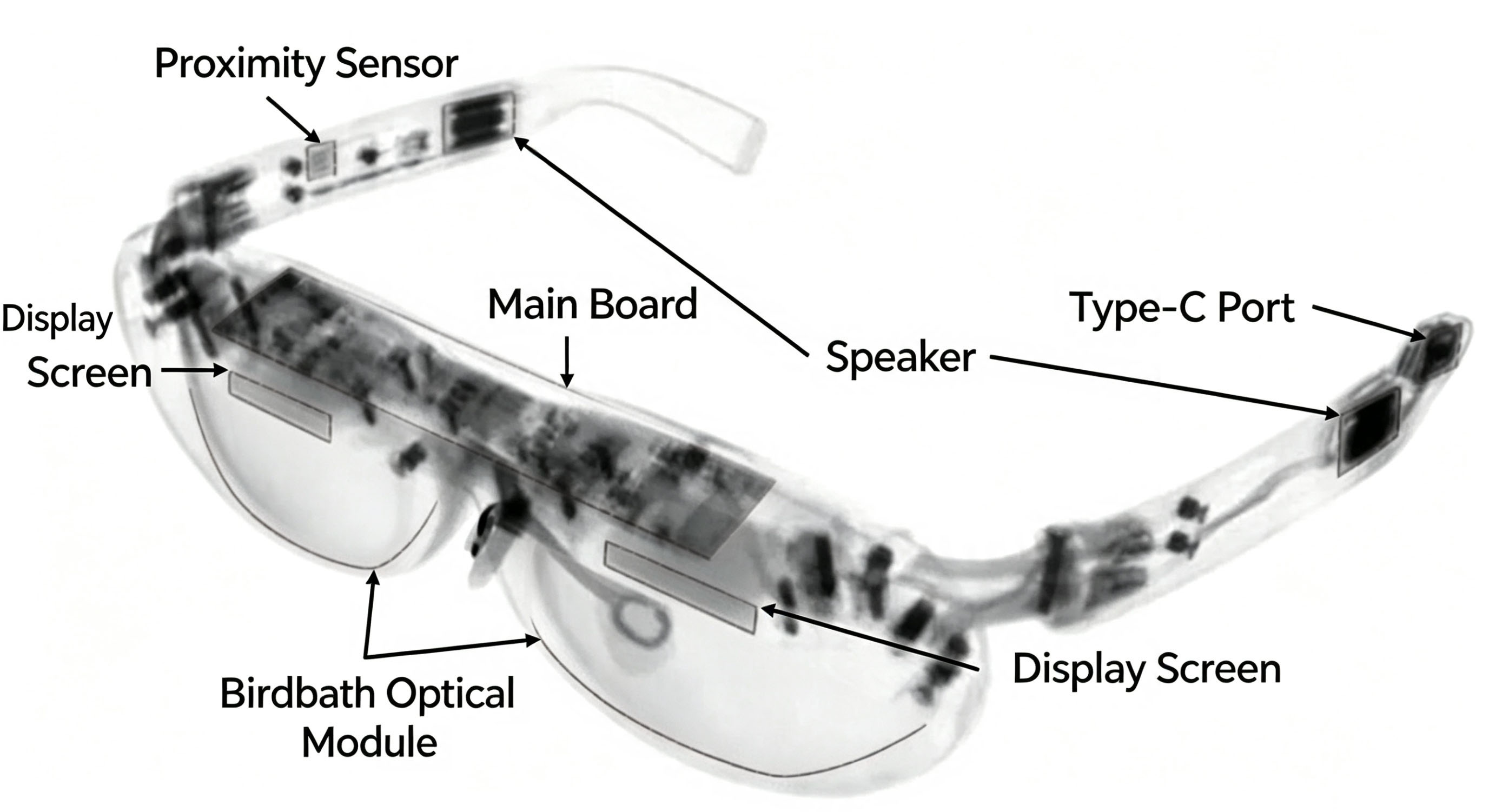

AI glasses adhesive applications fall into four zones: Optics, Structure, Electronics, and Sealing & Auxiliaries.

1. Optics: transmission and refractive index drive image quality

The optical zone is the most delicate part of the glasses, and almost every adhesive decision here revolves around light.

1.1 Waveguide bonding: transparent UV optical adhesive

This is the most demanding joint in the entire device. The adhesive of choice is a transparent UV optical adhesive that delivers high transmission, no bubbles, low shrinkage and low stress.

Adhesive layer thickness consistency directly determines whether the image distorts. A deviation of a few hundredths of a millimeter tilts the picture; a single visible bubble can scrap the whole module.

The critical parameter is refractive index. Waveguide substrates vary by supplier, so the adhesive should ideally be tunable to match — this is how you eliminate ghost images.

1.2 Waveguide edge sealing: black masking UV adhesive

The second optical joint is waveguide edge sealing, which uses a black masking UV adhesive to absorb stray light and glare so the display stays readable outdoors.

Here you are not chasing transmission at all — you are chasing light absorption, the exact opposite of the bonding adhesive.

Selection priorities: for bonding adhesive, look at transmission, refractive index matching and cure stress. For edge sealant, look at optical density (OD) and weatherability.

2. Structure: balancing strength and precision

The structural zone carries the main mechanical loads of the device. The adhesive must hold firmly — without interfering with moving parts.

2.1 Temple joint: epoxy structural adhesive plus instant adhesive for fixturing

The temple joint, where the frame meets the arm, sees the highest mechanical load. The standard approach is a high-strength epoxy structural adhesive for the primary bond, paired with an instant adhesive for fast fixturing that keeps up with line takt time.

Because this joint is usually metal-to-plastic, avoid high-temperature cure adhesives that can warp the plastic component.

2.2 Hinge: dispensing accuracy matters more than the adhesive itself

The hinge is the opposite extreme. There must be enough adhesive to guarantee joint strength, yet never so much that it locks the hinge.

At this joint, dispensing accuracy outweighs adhesive selection, and manufacturers typically deploy vision inspection specifically to monitor adhesive volume.

Selection priorities: shear strength, cure temperature, and tolerance for clearance in moving parts.

3. Electronics: fix the cure temperature window first, performance second

The first rule in the electronics zone is do not damage the components. Cure method is therefore often the first screening criterion.

3.1 Mainboard chip: underfill plus thermal conductive adhesive

Mainboard chips use underfill to protect solder joints from cracking under drop impact and thermal cycling.

At the same time, a thermal conductive adhesive carries chip heat out to the temple housing. There is no fan inside the arm — this path is the entire thermal solution.

3.2 Camera module: low-temperature epoxy or visible-light cure

The camera module is the most sensitive joint of all. The image sensor (CMOS) can be damaged by short-wavelength UV, so conventional UV curing is not an option. Use a low-temperature epoxy or visible-light cure adhesive that introduces no heat and no UV radiation.

3.3 FPC flex: hot-melt or reinforcing adhesive

Flexible printed circuits are typically secured with hot-melt or reinforcing adhesive at the routing areas to prevent cracking at the bend.

Selection priorities: cure temperature window first, thermal conductivity second, and finally whether the adhesive is light-blocking.

4. Sealing & Auxiliaries: waterproofing, damping and corrosion protection

This last zone looks scattered, but it directly determines device reliability and rework cost.

• Speaker chamber: a silicone sealant provides waterproofing and dustproofing; its sealing grade maps directly to the device IP rating.

• Microphone: a damping adhesive controls vibration, preventing crosstalk and resonance.

• PCB surface: conformal coating protects against moisture and corrosion.

• Battery: double-sided tape or VHB tape secures the cell, keeping it reworkable while doubling as a cushion.

Selection priorities: for sealing, focus on IP rating and aging resistance. For fastening, focus on reworkability and thickness tolerance.

Quick-reference selection table

FAQ

Q1: Which adhesive joint matters most in AI glasses? There is no single answer. Ranked by risk, waveguide bonding (image quality) and the camera module (component damage) usually come first.

Q2: Why can't standard UV adhesive be used for waveguide bonding? Its refractive index does not match the waveguide substrate, which creates ghost images, and its shrinkage stress and cure depth may also fall short. A dedicated transparent UV optical adhesive is required.

Q3: Why is UV curing unsuitable for the camera module? CMOS image sensors are sensitive to short-wavelength UV, so conventional UV curing damages the sensor. Low-temperature epoxy or visible-light cure systems are used instead.

Q4: Can structural adhesives never use high-temperature cure? Not necessarily — it depends on the substrates. Metal-to-metal joints can tolerate higher cure temperatures. For metal-to-plastic, cure temperature must be controlled to prevent the plastic part from warping.

Q5: How many different adhesives does one pair of AI glasses use? It depends on design complexity, but typically six to ten functional adhesives: UV optical adhesive, black masking UV adhesive, epoxy structural adhesive, instant adhesive, underfill, thermal conductive adhesive, silicone sealant, damping adhesive and conformal coating.

Conclusion: adhesive is the invisible engineering behind mass production

Adhesive looks like the least glamorous material on the BOM, yet it simultaneously affects optical performance, structural reliability, thermal efficiency and IP rating. Get the selection logic right for each joint, and rework and scrap rates at mass production drop noticeably.

If you are selecting adhesives for an AI glasses program, we supply the full range — from transparent UV optical adhesives and masking adhesives to structural, thermal and sealing products — with customization of refractive index, cure window and viscosity to match your substrates and process.

Contact us for samples and a tailored selection recommendation.
