Waterproofing Conformal Coating

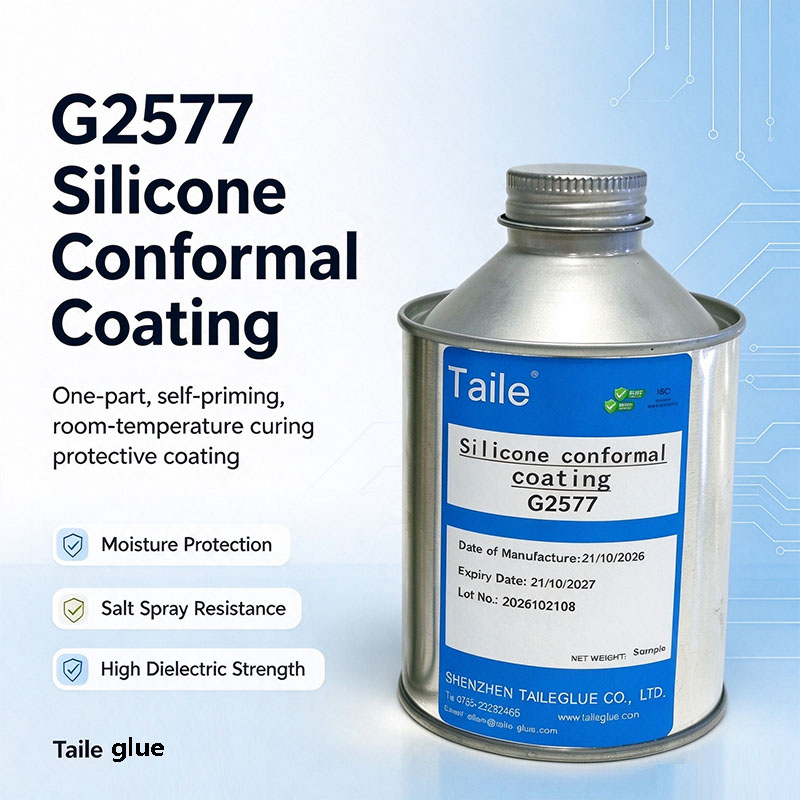

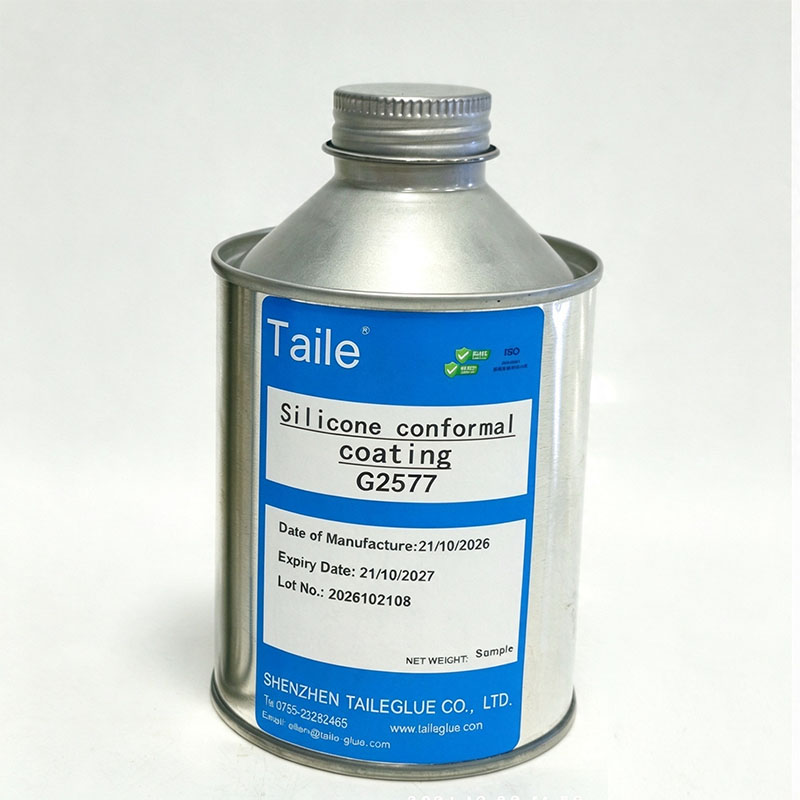

G2577 is a one-component, self-priming, room temperature curing silicone conformal coating. It cures at room temperature in 5-10 minutes to form a film that combines the flexibility of rubber with a smooth, transparent surface. It offers excellent moisture-proof, weather-resistant, and salt-spray resistant properties, capable of withstanding harsh environments. It features excellent abrasion resistance, high electrical insulation (dielectric strength 36 kV/mm), and a wide operating temperature range of -65℃ to 200℃. It can be applied by spraying, brushing, or dipping, and is easy to repair. It is widely used for insulation and anti-corrosion protection of PCBs in automotive electronics, power supplies, communication base stations, instruments, home appliances, LED lighting, and solar applications.Shelf life is 12 months, available in 1L and 5L packaging.

Product Highlights & Features

One-component, self-priming, room temperature curing
 Room temperature tack-free drying in 5-10 minutes
 Cured film combines rubber flexibility with a smooth, transparent surface
 Excellent moisture-proof, weather-resistant, and salt-spray resistant performance
 Excellent abrasion resistance, suitable for applications requiring toughness and wear resistance
High temperature resistant up to 200℃, low temperature resistant down to -65℃
 Good resistance to acids, alkalis, salts, detergents, and other chemicals
 Excellent electrical insulation, dielectric strength 36 KV/mm
Easy to repair
 Can be applied by spray, brush, or dip

 Shelf life: 12 months
 Packaging: 1L/can, 5L/barrel

Operating Instructions

1.Clean the surface to be coated to remove impurities, oil stains, and other contaminants for the expected coating effect.
2.Do not pour the dispensed adhesive back into the original package to prevent contamination. The workplace should be well ventilated or forced ventilated.
3.Spraying, brushing, and dipping are all acceptable. Room temperature curing requires a ventilated, well-circulated environment.
4.Reliability test conditions: After spraying, brushing, or dipping, the PCBA should be placed in a ventilated environment at room temperature for 168 hours before reliability testing. Or bake at 60℃-70℃ for 2-4 hours, then leave for 24 hours before reliability testing.
5.If accidentally contacted with skin, wash immediately with soap and water. If contacted with eyes, rinse with plenty of water first, then seek medical attention.

Application Fields & Uses:
Automotive electronics
 Power supply and inverter
Communication base station
 Instrumentation
 Home appliances
 LED and lighting
Solar applications
 Circuit board insulation and anti-corrosion

Packaging:

 1L/can, 5L/barrel

Other custom packaging
Storage & Transportation:

Store in a cool, dry place at 5-38℃, keep container sealed

 Keep away from sparks and open flames

After use, immediately cover the lid to avoid contact with air

Shelf life: 12 months
