Acrylic Conformal Coating

TL-204 is a colorless and transparent modified acrylic resin conformal coating. It features excellent environmental friendliness, free of heavy metals and aromatic solvents like xylene and ethylbenzene. Its low odor makes it very suitable for on-site operation. It can be applied by manual and mechanical brushing, dipping, flow coating, and spraying, with fast curing (5-10 minutes tack-free at 25℃). After curing, it forms a transparent protective film with good high and low-temperature resistance, excellent insulation, moisture-proof, anti-corrosion, salt spray resistance, and UL94 V-0 flame retardant properties. It has good adhesion (5B grade) to various circuit boards and is widely used for insulation and anti-corrosion protection of PCBs in home appliances, power supplies, instrumentation, and LED displays and lighting.Shelf life: 12 months

Product Highlights & Features

Colorless transparent modified acrylic resin varnish
 Excellent environmental friendliness, free of heavy metals
 Solvent contains no aromatic solvents like xylene or ethylbenzene
 Low odor, very suitable for on-site operation by workers
Suitable for manual and mechanical brushing, dipping, flow coating, spraying

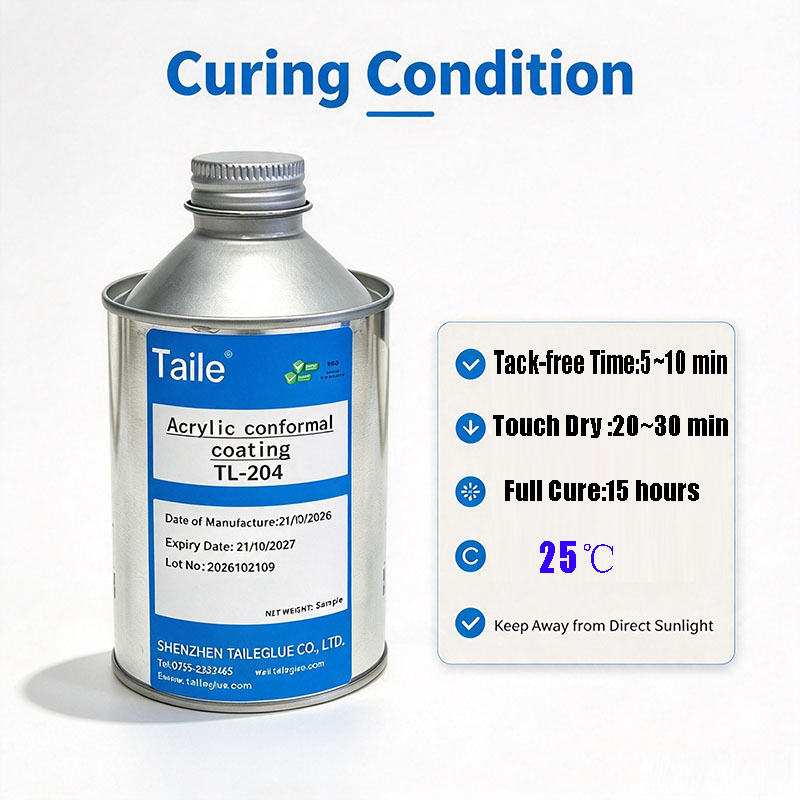

 Fast curing: 5-10 min tack-free (25℃)
 Good adhesion to various circuit boards (5B grade)

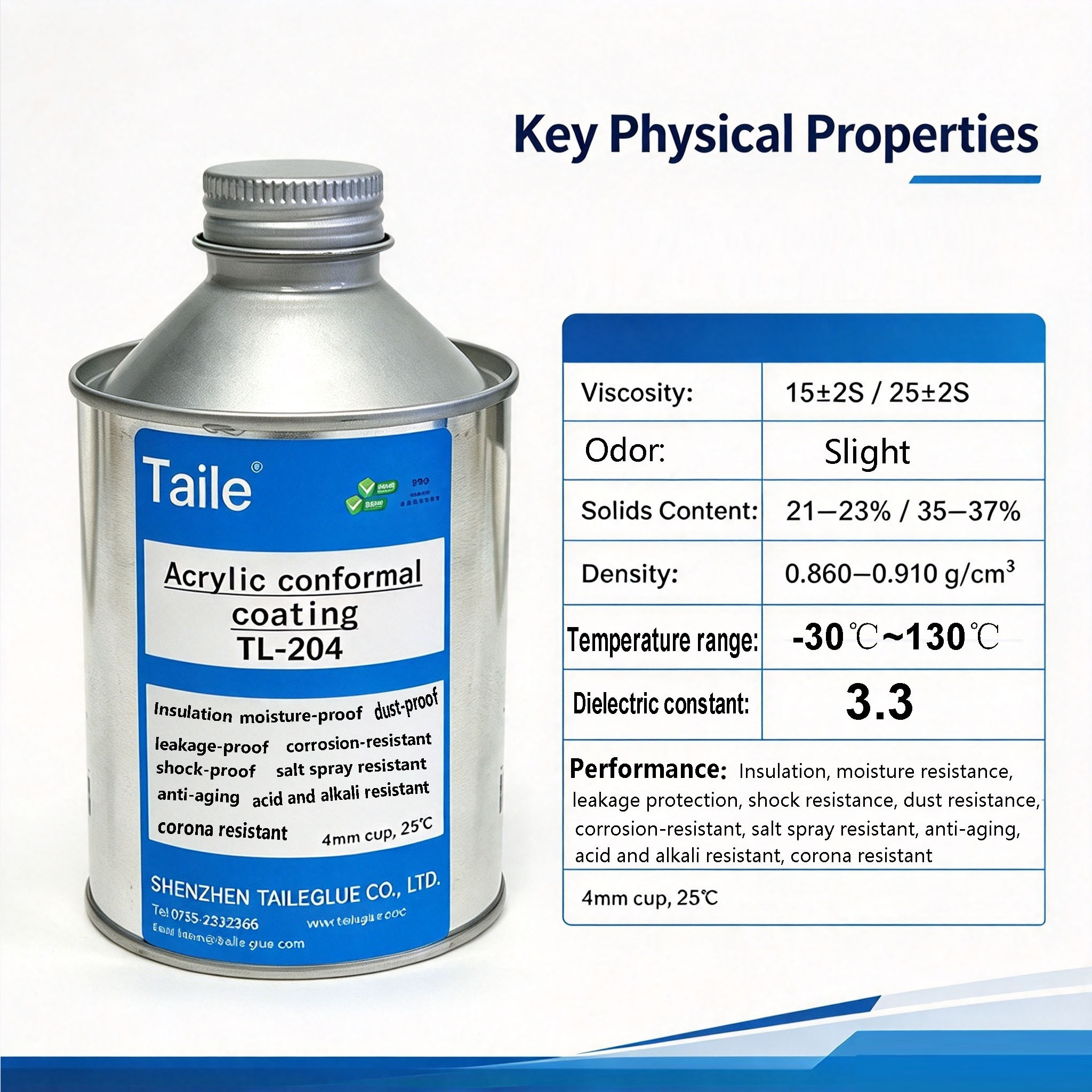

 Good high and low temperature resistance: no yellowing at 130℃, resistant to -30℃
Excellent insulation, moisture-proof, anti-leakage, anti-vibration, anti-dust, anti-corrosion, salt spray, anti-aging, acid and alkali resistance, corona resistance
UL94 V-0 vertical flame retardant performance
 Recommended dry film thickness 30-50 μm

 Shelf life: 12 months
 Packaging: 1L/can, 5L/barrel

Operating Instructions

1.Clean the surface to be coated to remove impurities, oil stains, and other contaminants for the expected coating effect.

2.Suitable for manual and mechanical brushing, dipping, flow coating, and spraying.
3.Do not pour the dispensed adhesive back into the original package to prevent contamination. The workplace should be well ventilated or forced ventilated.
4.Recommended dry film thickness is 30-50 μm.
5.Reliability test conditions: After spraying, brushing, or dipping, leave the PCBA in a ventilated environment at room temperature for 168 hours, or bake at 50℃-60℃ for 4-6 hours, then leave for 24 hours before testing.

6.If accidentally contacted with skin, wash immediately with soap and water. If contacted with eyes, rinse with plenty of water first, then seek medical attention.

Application Fields & Uses:
Home appliances
 Power supplies and inverters
 Instrumentation
 LED displays and lighting
 PCB insulation and anti-corrosion
Moisture-proof and anti-leakage protection
 Salt spray and anti-corrosion protection
