2777
Taile
| 包装: | |
|---|---|
| Availability: | |
| Quantity: | |

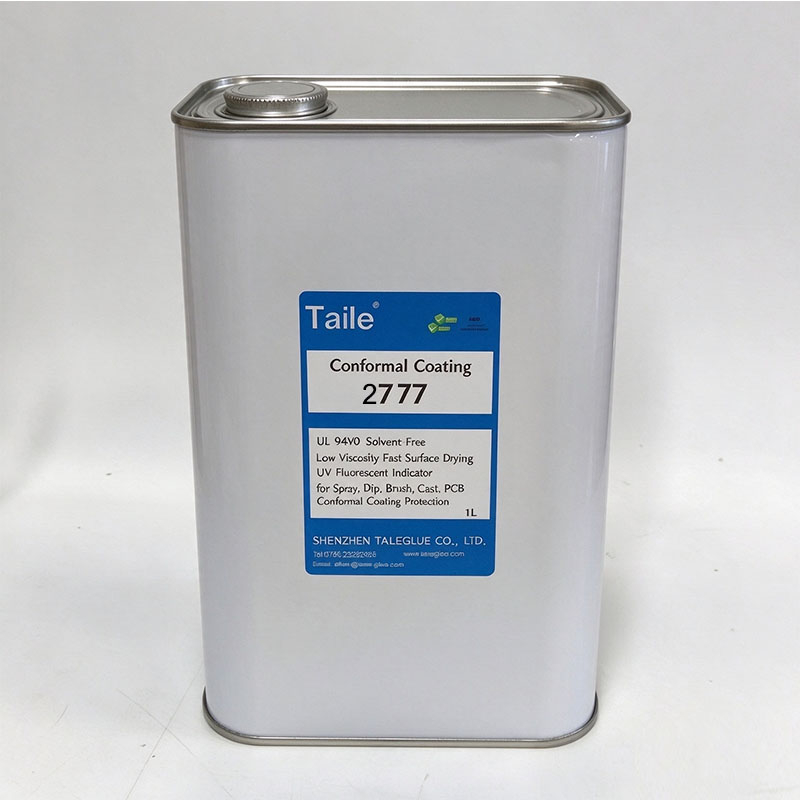

Taile 2777 is a one-component, solvent-free, low viscosity, transparent silicone resin conformal coating with 100% solids. It contains a UV fluorescent indicator and can self-level quickly, making it easy to spray, dip, brush, or cast. It offers fast surface drying at room temperature (8-10 minutes), good thermal shock resistance, moisture resistance, and stable performance from -60℃ to +200℃. It meets UL 94V0 and is suitable for PCB conformal coating protection. Shelf life is 12 months, available in 1L, 5L, and 18L packaging.
Product Highlights & Features
Single component, easy to use
Solvent-free, 100% solids
Low viscosity, transparent
Fast self-leveling, easy to spray, dip, brush, or cast
Contains UV fluorescent indicator
Fast surface drying at room temperature: 8-10 minutes
Forms a flexible surface after complete curing
Good thermal shock resistance and moisture resistance
Good high-frequency and low-frequency dielectric properties
Stable performance under -60℃ to +200℃
Good weather resistance and UV resistance
Acid, alkali and sulfur corrosion prevention
Salt spray resistance
Can be heated for fast curing (60℃~80℃)
Meets UL 94V0
Shelf life: 12 months
Packaging: 1L/can, 5L/barrel, 18L/barrel
Operating Instructions
1.Surface finishing: Clean the surface of the object to be coated, removing dust, oil, etc.
2.Coat samples as required (spray, brush, dip, flow, etc.).
3.If a thinner coating is desired, it can be diluted with a special diluent.
4.Fast surface drying at room temperature in 8-10 minutes; can be heated (60℃~80℃) for fast curing.
5.If the unsealed resin is not fully used, please seal and store the remaining resin in time.
Application Fields & Uses:
PCB protection
Electronic component protection
Circuit board protection
Spray coating
Dip coating
Brush coating
Cast coating
Conformal coating protection
Packaging:
1L/can, 5L/barrel, 18L/barrel
Other custom packaging
Storage & Transportation:
Stored in a cool and dry place at 15-25℃
Protection from sunlight
Prevent contamination of acid and alkali liquid, isolate fire source, keep away from heat source
Protect from sun, fire, moisture, acid, alkali and salt during transportation
If temperature is lower than 50℃, transport as ordinary chemicals
Shelf life: 12 months
Parameter Item | Value |
Model | 2777 |
System | One-component silicone resin |
Appearance | Colorless transparent liquid |
Density | 0.98±0.5 g/cm³ |
Solid Content | 100% |
Viscosity | 500±50 mPa·s |
Applicable Time | ≤10 min (25℃/50% RH) |
Curing Speed | 1H initial consolidation (25℃, 50%) |
Hardness | Shore A 30±5 |
Elongation | 75% |
Operating Temperature | -60℃~+200℃ |
UL Flame Retardant Rating | 94-V0 |
Shelf Life | 12 months |
Packaging | 1L/can, 5L/barrel, 18L/barrel |
Features | Solvent-free, 100% solids, UV fluorescent indicator, fast surface drying, heat & moisture resistant |
Application | PCB Protection,Electronic Component Protection,Circuit Board Protection,Conformal Coating Protection |
Model | Resin Type | Tack-free Time | Viscosity | Solid Content | Dielectric Strength | Application Temperature |
2577 | Modified acrylic resin | 15~30 min | 300~360 mPa·s | 38% | ≥15 kV/mm | -40~125℃ |
2587 | Silicone resin | 15~20 min | 400 mPa·s | 74% | ≥20 kV/mm | -50~200℃ |
2588 | Modified Acrylic UV + Moisture | UV:10~30s | 150~250 mPa·s | 100% | ≥50 kV/mm | -50~130℃ |
2589 | Modified Acrylic UV + Moisture | UV:10~30s | 300~700 mPa·s | 40±1% | ≥50 kV/mm | -50~130℃ |
2584 | Modified Polyurethane | 15~20 min | 60~90 mPa·s | 100% | ≥110 kV/mm | -40~130℃ |
2777 | Silicone resin | 8~10 min | 450~550 mPa·s | 100% | / | -60~200℃ |
