Polyurethane Potting Compound

Taile 8552 is a two-component polyurethane potting compound with ratio can be set according to different requirements. It has a white/black appearance, a viscosity of 1000-1500 cps, a hardness of 60D, and a thermal conductivity of 0.7 W/m·K. It can be cured at room temperature or by heating, and provides good insulation, waterproof, and flame retardant protection. It is widely used for motor potting, power supply module potting, electronic component encapsulation, and industrial control.

Product Highlights & Features

Two-component polyurethane potting compound
The  ratio can be set according to different requirements, easy to use
 Color: White/Black
Viscosity: 1000-1500 cps
 Hardness: 60D
Thermal conductivity: 0.7 W/m·K
 Room temperature or heat curing
 Suitable for motor and power supply module potting
 Good insulation, waterproof, and flame retardant properties
 Non-corrosive to electrical components

Low viscosity, penetrate tiny winding gaps

Flexible cured elastomer, reduce thermal stress

Anti-vibration damping protection

Operating Instructions:

1.Before use, confirm the 5:1 or 1:1 mix ratio of components A and B, and weigh accurately by weight.
2.Clean the potting surfaces to ensure they are dry, free of oil, and free of dust.
3.Mix components A and B thoroughly to avoid uneven mixing and poor curing.
4.Pour the mixed adhesive evenly into the area to be encapsulated; vacuum defoaming is recommended if necessary.
5.Cure at room temperature or by heating, and proceed with subsequent testing or use after curing.

Application Fields & Uses:
Motor potting
 Power supply module potting
 Electronic component encapsulation
Transformer potting
Sensor potting
Automotive electronics potting
 Industrial control potting
 Waterproof sealing

Packaging:

 1kg/kit,5kg/kit, 10kg/kit,20kg/kit

Other custom packaging
Storage & Transportation:

 This product is non-dangerous goods, stored and transported as general chemicals

Store in a cool, dry, ventilated place, away from direct sunlight

Shelf life: 6 months

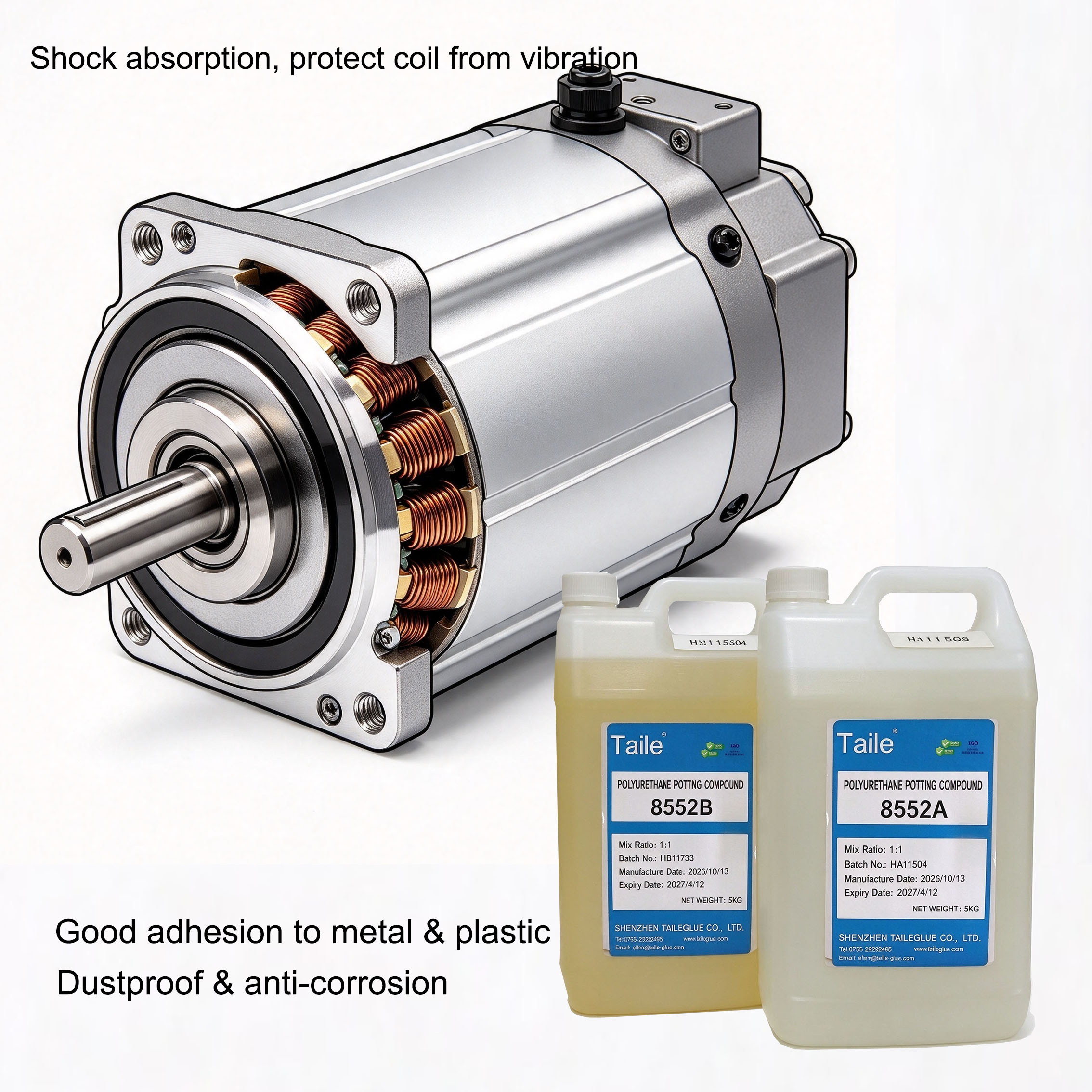

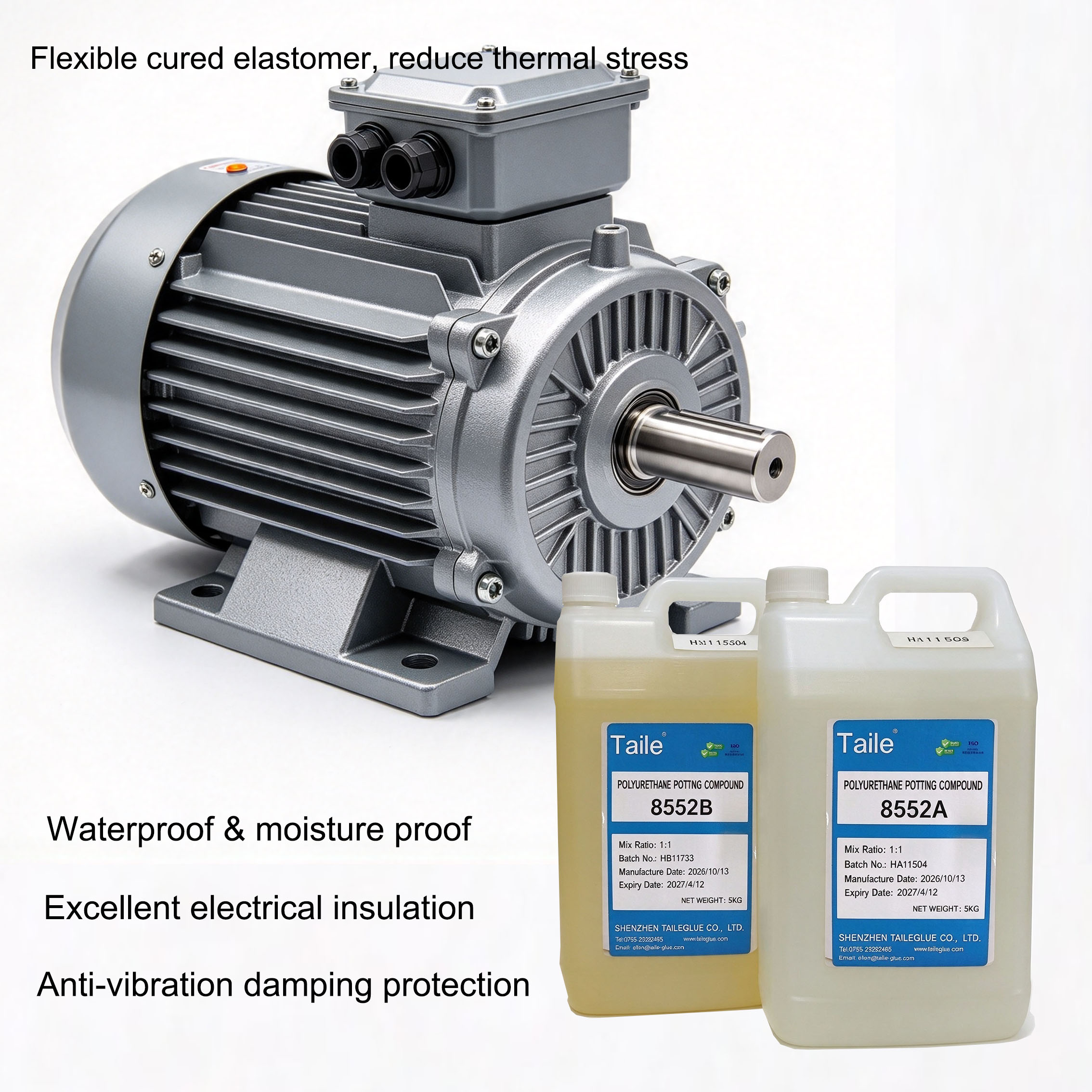

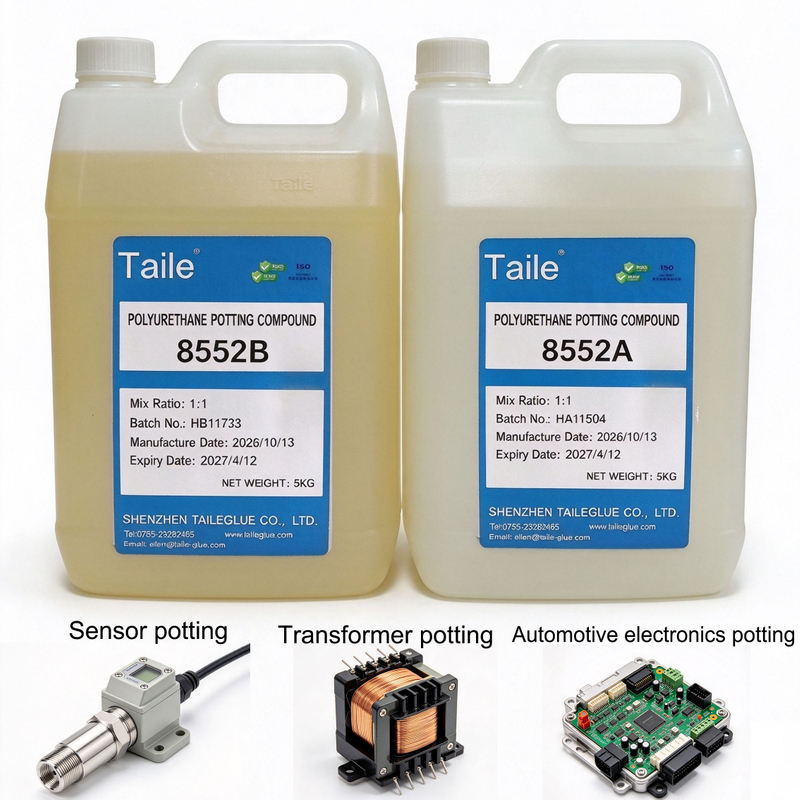

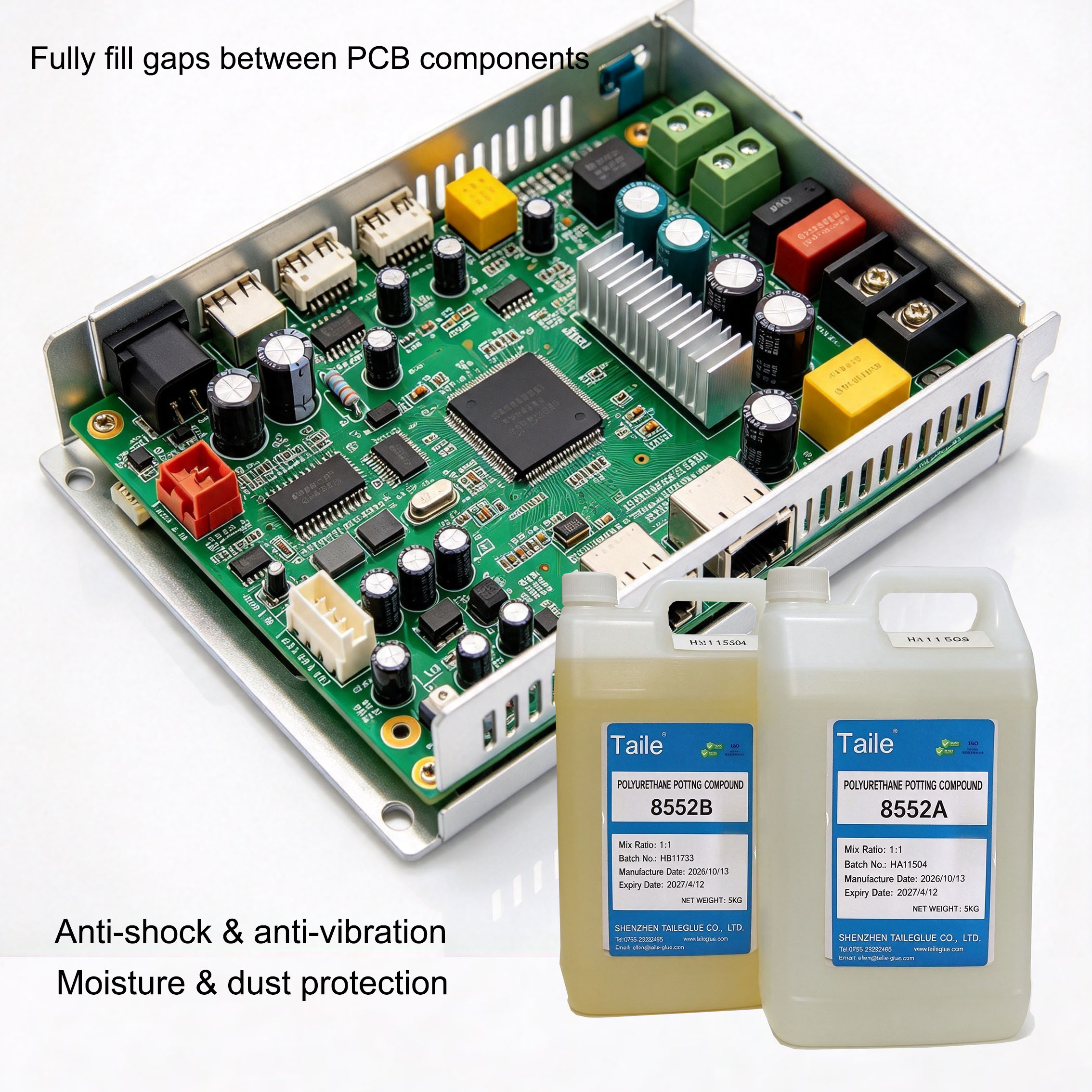

This is our Taile 8552A/B polyurethane potting compound, the  ratio can be set according to different requirements
After curing, it becomes soft elastic rubber. It's widely used for motors, magnetic components, sensors, power modules and automotive electronics.
It has good electrical insulation, waterproof, moisture-proof and shock absorption performance, can reduce thermal stress during temperature cycling.
We supply from small trial batches to mass production. Samples are available for your testing
