8122
Taile
| 包装: | |
|---|---|
| Availability: | |
| Quantity: | |

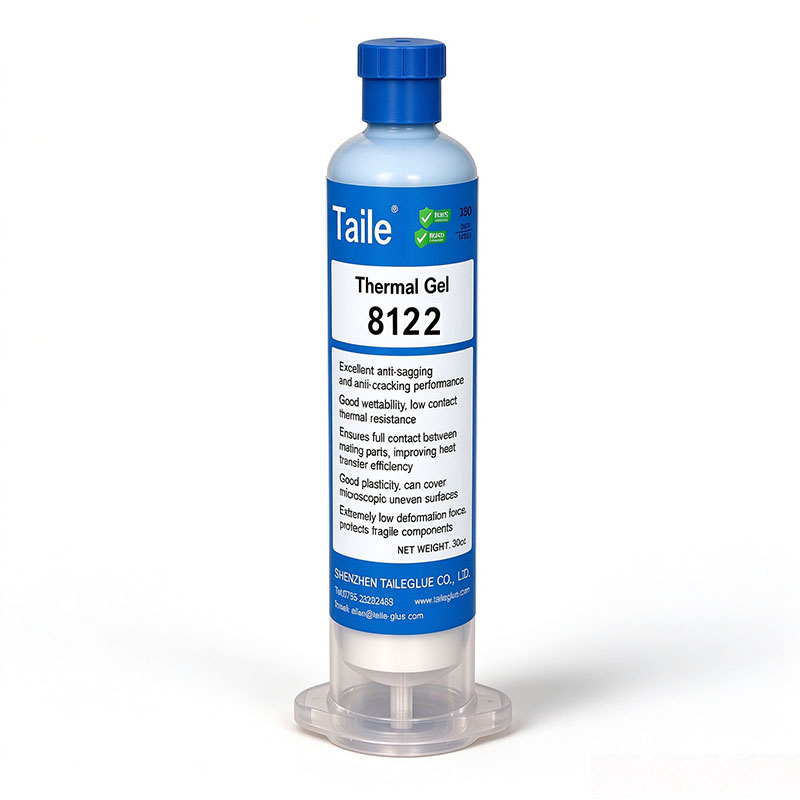

8122 is a one-component thermally conductive gel (thermal gap filler). It features superior thermal conductivity (2.0 W/m·K) and high fluidity, making it ideal for connecting components to heat sinks. It offers low contact thermal resistance, excellent anti-sagging and anti-cracking performance, and meets UL94 V-0 flame retardant rating. With a dielectric strength of ≥12 kV/mm and volume resistivity of 1.0×10¹³ Ω·cm, it provides reliable electrical insulation. It is suitable for mobile communication equipment, printed circuit board assemblies, new energy vehicle battery packs, optical communication equipment, automotive electronics, and fragile/delicate components.Shelf life is 12 months, available in 30cc & Customizable packaging.
Product Highlights & Features
One-component, no mixing required, easy to use
High fluidity, easy to handle and process
Excellent thermal conductivity: 2.0 W/m·K
Low contact thermal resistance, rapid heat transfer
Excellent anti-sagging and anti-cracking performance
Good wettability, can cover microscopic uneven surfaces
Complies with UL94 V-0 flame retardant rating
Complies with RoHS/REACH environmental requirements
Dielectric strength: ≥12 kV/mm
Volume resistivity: 1.0×10¹³ Ω·cm
Specific Gravity: 2.80±0.10 g/cm³
Extrusion rate: 25~35
Suitable for mobile communication equipment, PCBA, new energy vehicle battery packs, optical communication equipment, automotive electronics, and fragile/delicate components
Shelf life: 12 months
Packaging: 30cc & Customizable packaging.
Operating Instructions
1.Before use, confirm the product condition; no mixing is required, use directly.
2.Clean the surfaces to be coated to ensure they are dry, free of oil, and free of dust.
3.Use dispensing equipment to evenly apply the thermal gel between the heat-generating component and the heat sink.
4.After assembly, the gel fills microscopic uneven surfaces to ensure full contact.
5.After curing/use, proceed with subsequent testing or assembly.
Application Fields & Uses:
New energy vehicle battery packs
Optical communication equipment
Mobile communication equipment
PCB assembly
Automotive electronics
Electronic component heat dissipation
Fragile component cooling
Thermal management
Gap filling
Parameter Item | Value |
Model | 8122 |
System | One-component thermally conductive silicone |
Appearance | Paste |
Density | 2.80±0.10 g/cm³ |
Type | Thermal Gel |
Composition | Thermally Conductive Silicone |
Extrusion Rate | 25~35 (30cc syringe @85psi) |
Thermal Conductivity | 2.0 W/m·K |
Dielectric Strength | ≥12 kV/mm |
Volume Resistivity | 1.0×10¹³ Ω·cm |
Flame Retardant Grade | UL94 V-0 |
Shelf Life | 12 months |
Packaging | 30cc |
Features | High fluidity, low contact thermal resistance, anti-sagging,anti-cracking performance,meets UL94 V-0 flame retardant rating,insulation |
Application | New energy vehicle battery packs, optical communication, PCB assembly, automotive electronics,Mobile Communication Equipment,Fragile/Delicate Components |
Model | Type | Thermal Conductivity | Dielectric Strength | Volume Resistivity | Features | Application |
8120 | One-component thermal gel | 1.0 W/m·K | ≥12 kV/mm | 1.0×10¹² Ω·cm | Low deformation force, good plasticity, anti-sagging | Automotive electronics, industrial controllers, PCBA |
8122 | One-component thermal gel | 2.0 W/m·K | ≥12 kV/mm | 1.0×10¹³ Ω·cm | Good fluidity, low contact thermal resistance | New energy vehicle battery packs, optical communication |
9183 | Two-component thermal gel | 2.0 W/m·K | ≥10 kV/mm | 1.0×10¹² Ω·cm | Soft, anti-sagging | Mobile communication, PCBA |
8130 | Two-component thermal gel | 3.0 W/m·K | ≥10 kV/mm | 1.0×10^14 Ω·cm | Soft, anti-sagging | New energy vehicle battery packs |
8150 | Two-component thermal gel | 5.0 W/m·K | ≥10 kV/mm | 1.0×10¹² Ω·cm | High thermal conductivity, anti-sagging | High power electronic components |
