Two-Component Silicone Foaming Sealant

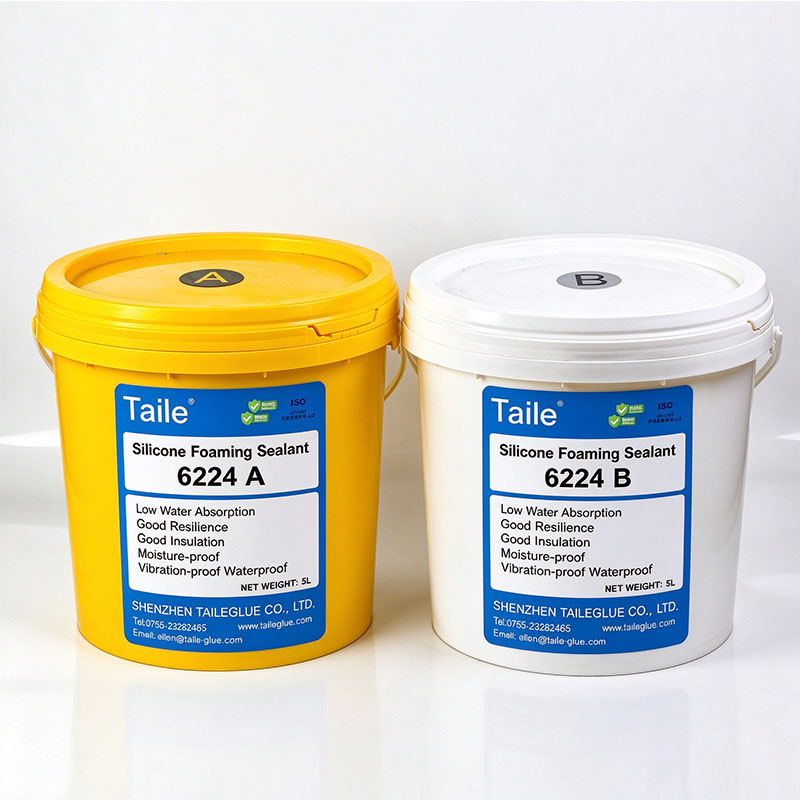

6224 is a two-component silicone foaming sealant. It consists of two liquid parts A and B, which cure and foam through an addition reaction after mixing at a 1:1 mass ratio. It features low water absorption, good resilience, and can be used in gradient 3D applications. It complies with RoHS environmental requirements and provides moisture-proof, vibration-proof, and insulation functions. It is suitable for bonding and sealing the frames of electronic, electrical, and instrument components.

Product Highlights & Features

Two-component addition-cure silicone foam
Mixes at 1:1 (by mass) and cures/foams through addition reaction
Low water absorption
 Good resilience
 Can be used in gradient 3D applications
 Complies with RoHS environmental requirements
 Suitable for bonding and sealing frames of electronic, electrical, and instrument components
Provides moisture-proof, vibration-proof, and insulation functions
 Foaming time: 40~60 s
 Tack-free time: 8~15 min
 Post-foaming density: 0.25~0.35 g/cm³
 Hardness: 40±10
Dielectric strength: ≥4 kV/mm
 Volume resistivity: ≥1.0×10^14 Ω·cm

 Shelf life: 12 months
 Packaging: 1kg per set,10kg per set,20kg per Custom Packaging

Operating Instructions
1.Before use, confirm the product condition and accurately weigh components A and B at a 1:1 mass ratio.
2.Clean the surfaces to be coated to ensure they are dry, free of oil, and free of dust.
3.Mix components A and B thoroughly and apply to the area to be sealed or potted.
4.After mixing, the gel begins to foam within 40-60 seconds and becomes tack-free in 8-15 minutes.
5.During foaming and curing, keep the components fixed to avoid displacement until fully cured.

Application Fields & Uses:
Electronic component sealing

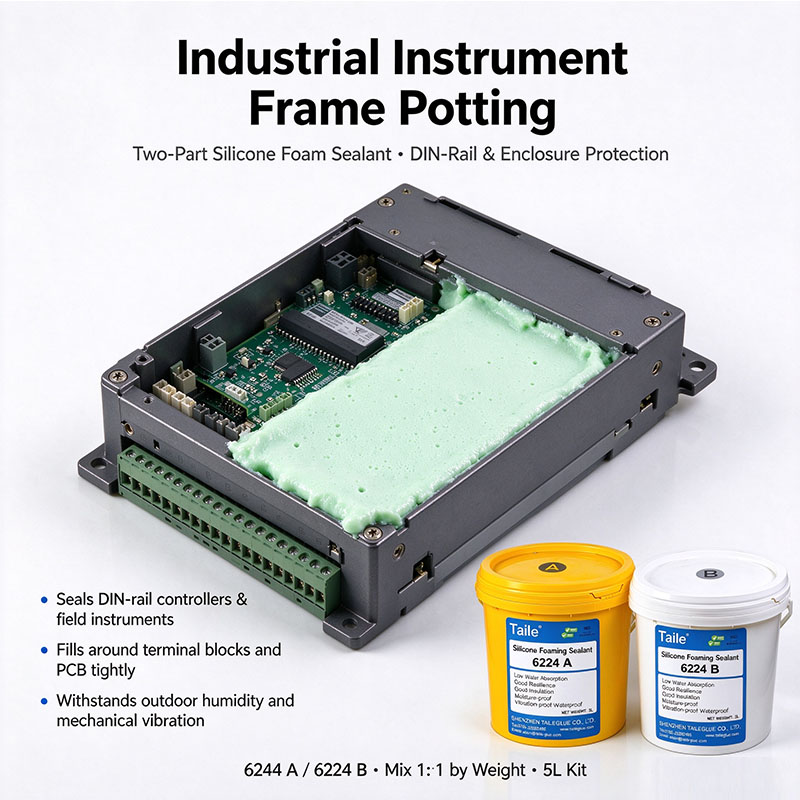

 Instrument frame potting
 Electrical component protection
 Moisture-proof protection
 Vibration-proof protection
 Insulation protection
 Frame sealing
Gap filling
